ADSS Double Jacket All Dielectric Self Supported Aerial Cable

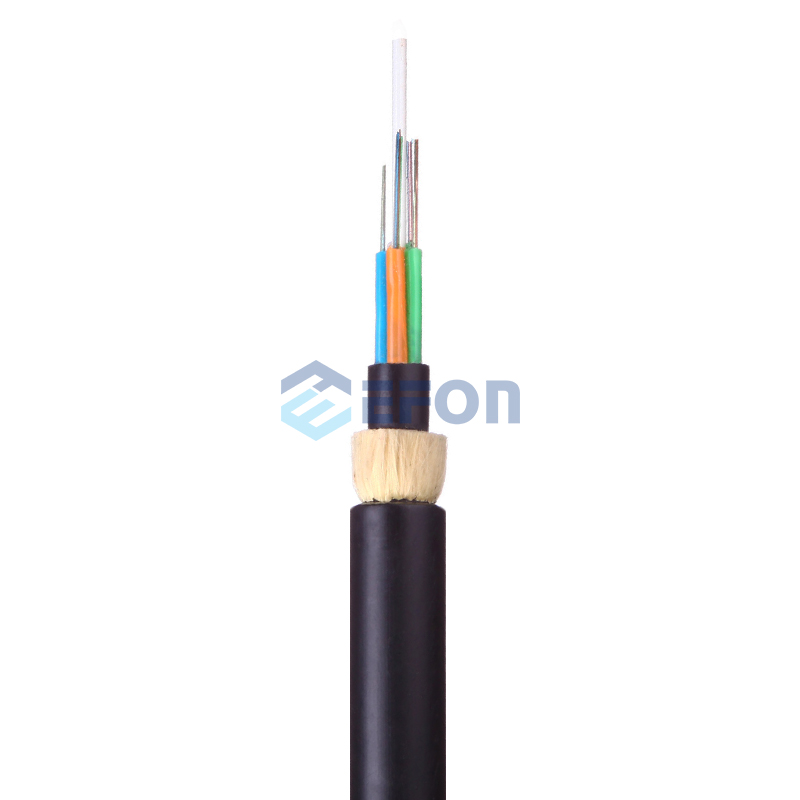

Product Construction

Fiber:250µm colored fiber 2-288fibers
Fiberglass reinforced plastic (FRP)
Aramid yarn strength member
Outer Jacket: Black UV and waterproof polyethylene (PE)


Features
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provides high tensile strength.


Applications
Inter building voice or data communication backbones.
Installed as aerial/lashed, ducts, underground conduits.
For overhead power lines under 110kV, PE outer sheath is applied.
For power lines equal to or over 110kV, AT outer sheath is applied.

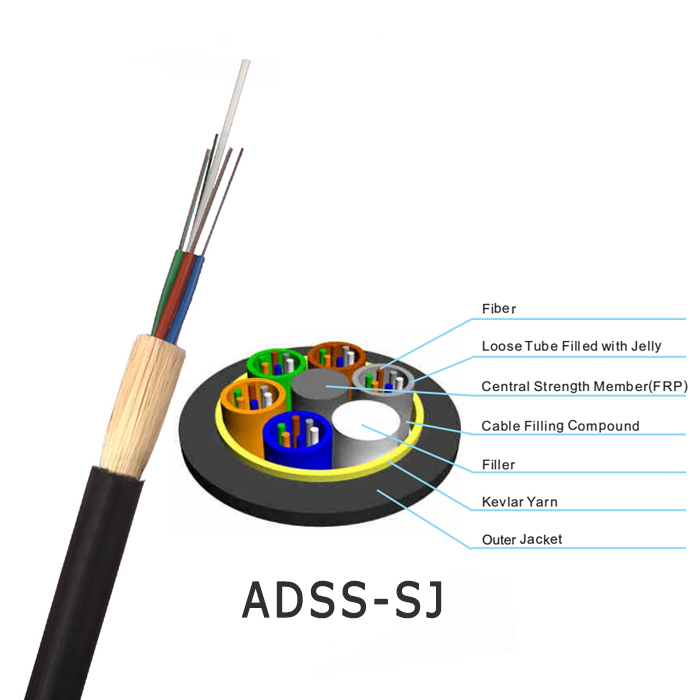

Structure and Technical SpecificationsADSS-SJ(50-150M)

Ref. Outer Diameter(mm)	Ref. Weight(kg/km)		Rec. Daily Maximum Working Tension(kN)	Maximum allowable working tension (kN)	Break Force(kN)	StrengthMemberASC(mm2)	Modulus of elasticity CSA(kN/mm2)	HeatExpansionCoefficient(x10- 6/K)	Appropriate range (NESC standard, m)
	PE jacket	To Jacket							A	B	VS	D
11	110	120	1.0	2.5	8	3.0	6.6	2.1	120	80	100	80
11.5	115	125	1.5	4	ten	4.5	7.3	1.8	180	120	150	120
12	120	130	2.5	6	15	7.5	8.3	1.5	250	150	290	150

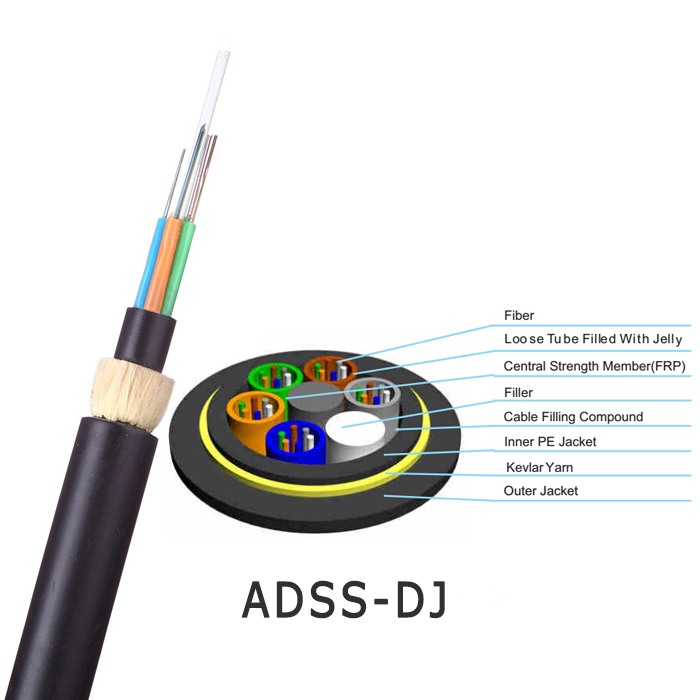

Structure and Technical SpecificationsADSS-DJ(50-750M)

Ref. Outer Diameter(mm)	Ref. Weight(kg/km)		Rec. Daily Maximum Working Tension(kN)	Maximum allowable working tension (kN)	Break Force(kN)	StrengthMemberASC(mm2)	Modulus of elasticityCSA(kN/mm2)	HeatExpansionCoefficient(x10- 6/K)	Appropriate range (NESC standard, m)
	PE jacket	To Jacket							A	B	VS	D
12.5	125	136	1.5	4	ten	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10:35 a.m.	9:45 a.m.	1.3	300	200	290	200
13.6	145	156	3.6	ten	twenty four	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	twenty two	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	60	32.2	19.1	0.1	750	530	750	510

Note: Only part of ADSS cables are listed in the table. ADSS cables with other spans can be requested directly from EFON. The specifications in the table are obtained on the condition that there is no difference in height and that the sag of the installation is 1% .The number of fibers is from 2 to 72. The identification of fibers is in accordance with the national standard.This technical sheet can only be a reference but not an addition to the contract, please contact our sales representatives for more information .
