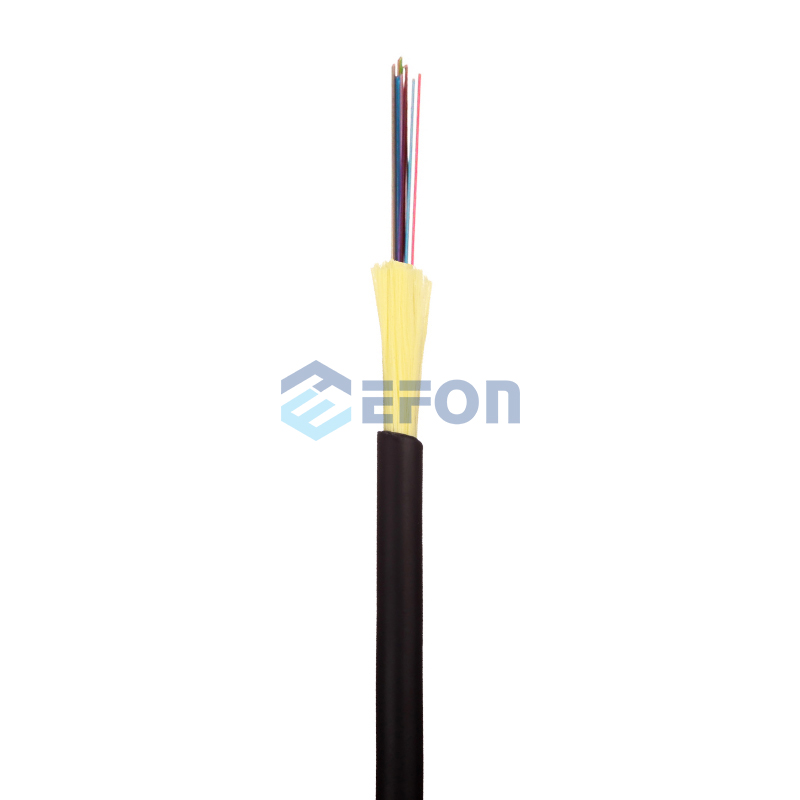

GJYFJU Heavy Duty Micro ADSS Fttx Drop Cable

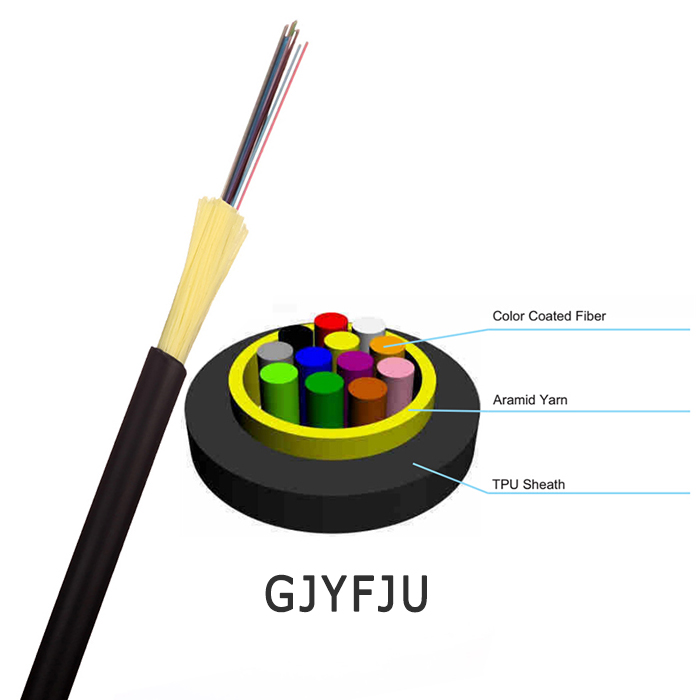

Product Construction

Fiber: 250µm color fibers
Strength Member: Aramid Yarn
Outer Jacket: TPU or UV and Flame resistant LSZH jacket


Features
Good mechanical and environmental characteristics.
Excellent abrasion resistance and cold temperature workability.
Solft, flexible, easy to lay and splice, and with big capacity transmission.


Applications
Used in access network access cable from outdoor indoor in customer premises network. Used as access building cable in premises distribution system.

Optical characteristics

fiber type	Mitigation		Overloaded Launch Bandwidth	Effective Modal Bandwidth	10 Gb/s Ethernet link length	Minimum bend radius
Terms	1310/1550nm	850/1300nm	850/1300nm	850nm	850nm
Unit	dB/km	dB/km	MHZ.km	MHZ.km	m	millimeter
G652D	0.36/0.22					16
G657A1	0.36/0.22					ten
G657A2	0.36/0.22					7.5
50/125		3.0/1.0	≥500/500			30
62.2/125		3.0/1.0	≥200/500			30
OM3		3.0/1.0	≥1500/500	≥2000	≥300	30
OM4		3.0/1.0	≥3500/500	≥4700	≥550	30
B1-OM3		3.0/1.0	≥1500/500	≥2000	≥300	7.5
B1-OM4		3.0/1.0	≥3500/500	≥4700	≥550	7.5

Structure and Technical Specifications GJFJU(TPU)

Number of cables	Cable diameter (mm)	Cable weight (kg/km)	Tensile Strength(N/100mm)		Crushing strength (N/100mm)
		TPU jacket	Short term	Long term	Short term	Long term
1-2	3.0	12	1000	400	2200	1000
4-12	3.5	15	1000	400	2200	1000

Structure and Technical Specifications GJFJH(LSZH)

Number of cables	Cable diameter(mm)	Cable weight(kg/km)	Tensile Strength(N/100mm)		Crushing strength (N/100mm)
		LSZH jacket	Short term	Long term	Short term	Long term
1-2	3.0	12	1000	400	2200	1000
4-12	3.5	15	1000	400	2200	1000
12-24	4.2	20	1000	400	2200	1000

Note: This technical sheet can only be a reference, but not an addition to the contract, please contact our sales representatives for more information.
