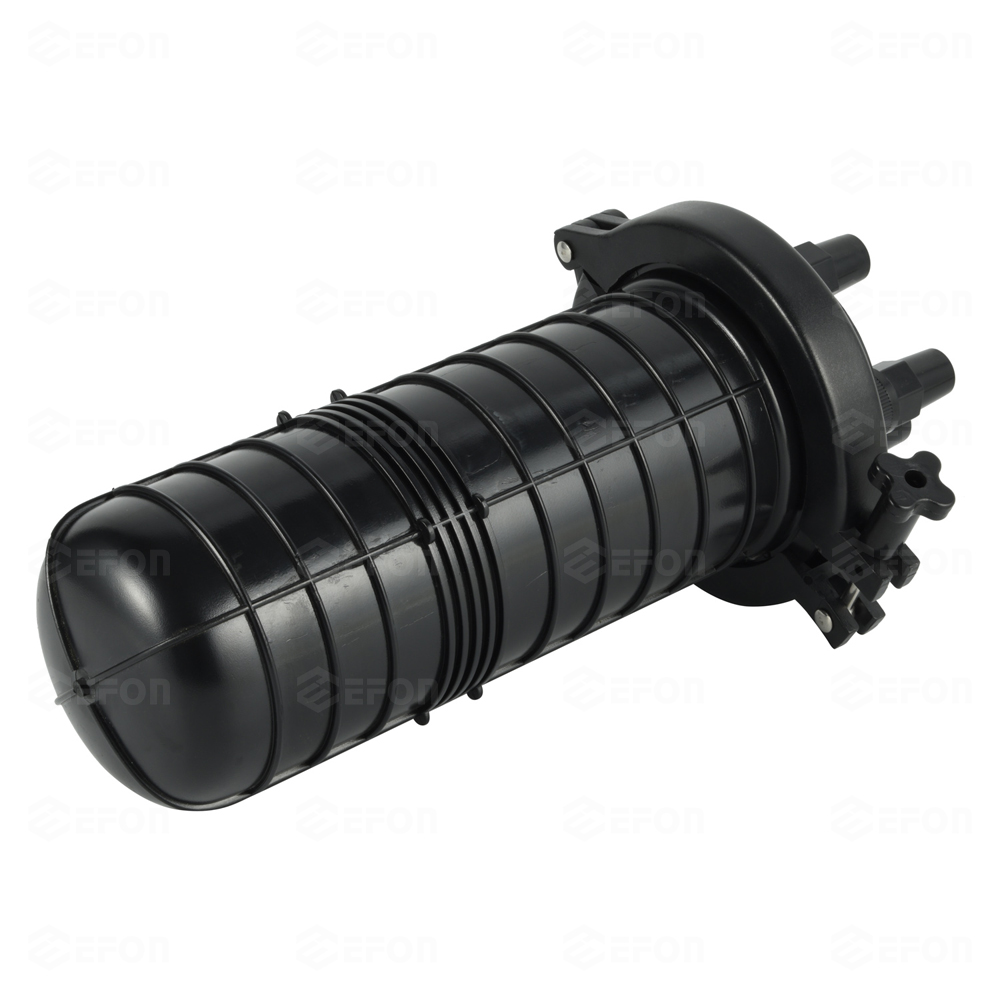

Use material of high-strength PC synthetic plastic, PP synthetic plastics, high-quality stainless steel.
Shell thickness≥4mm. enhanced insulation and heat resistance Corrosion resistance, aging resistance, excellent flame resistance and long working life.

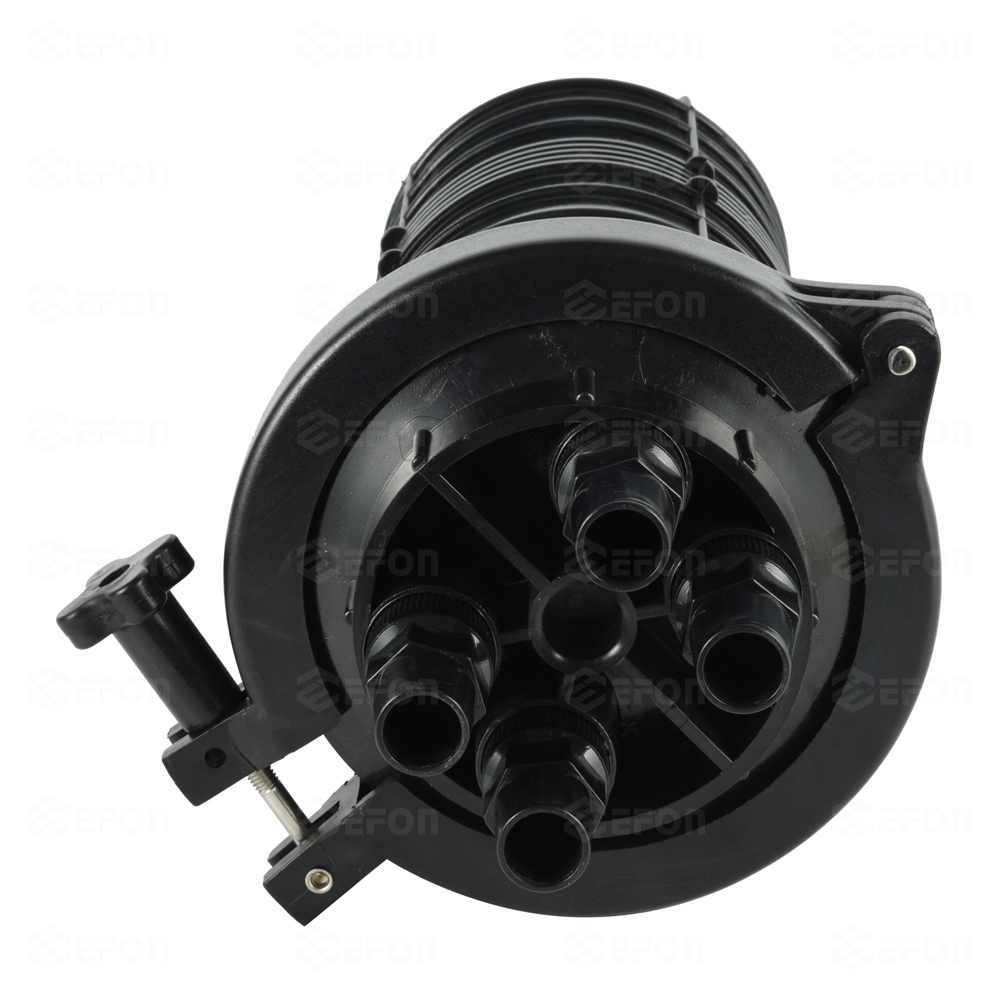

Mechanical seal and sticky cincture seal. Repeatedly reuse, be able to expand capabilities, convenient to construct and install, good sealing
Technical data 1,Comply with the various technical data of YD/T814.1-2013. 2,Cable port: 4 3,Cable Diameter:φ7-φ25 4,Max Capacity: 24fibers*6tray=144fibers(single) 72fibers*6tray=432fibers(ribbon) 5,Sealing way:silicone rubber 6,Dimension:φ250mm*470mm 7,Weight:3.0kg 8,Working life:25 years
