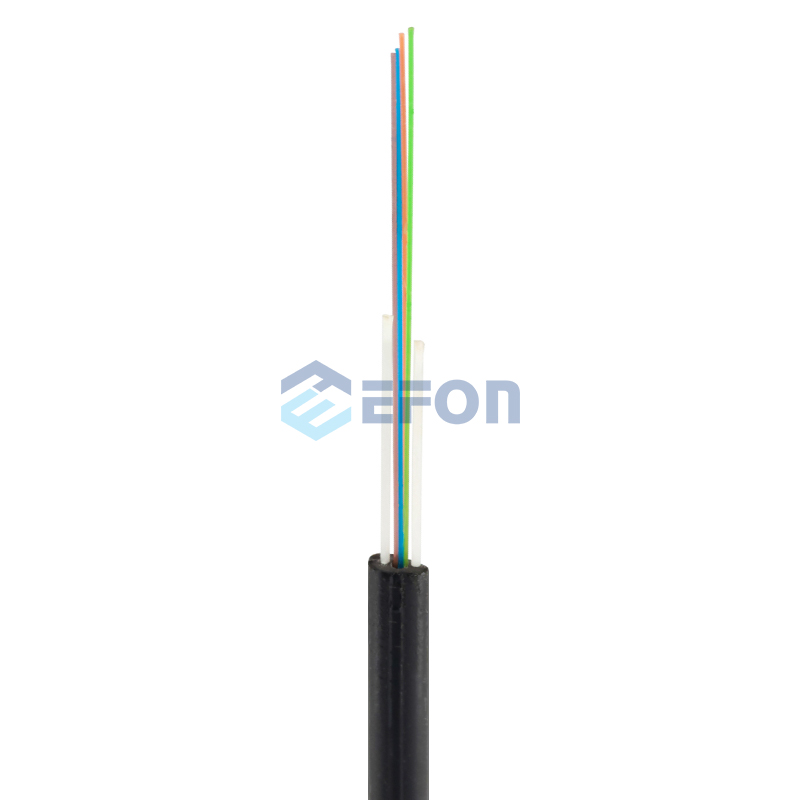

GJXH/GJXFH Indoor Flat Drop Cable

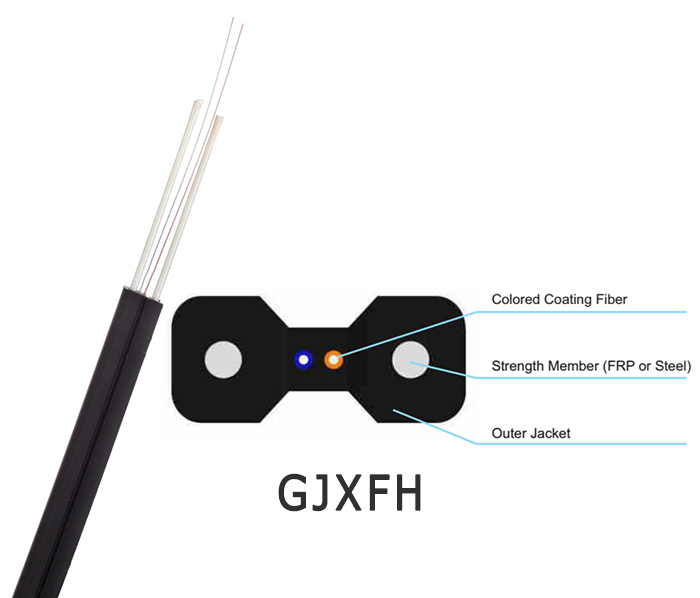

Product Construction:
Fiber: 2-12fibers
250µm colored fibers
Strength Member: Steel wire or FRP
Outer Jacket:  Flame resistant LSZH jacket


Features:
·Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
·Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
·Simple structure, light weight and high practicability.
·Novel flute design, easily strip and splice, simplify the installation and maintenance.
·Low smoke, zero halogen and flame retardant sheath.


Applications:

Used as access building cable. Used in indoor cabling, especially used for FTTH

Optical Characteristics

Structure and Technical Specifications

Note :1.This datasheet can only be a referance,but not a supplement to the contract,Please contact our sales people for

more information.

2.The cable core use the colored coating fiber of 250μm.

3.The tensile and crush of the cable are accordance with the values in the table when the strength member of FRP and Steel are used
