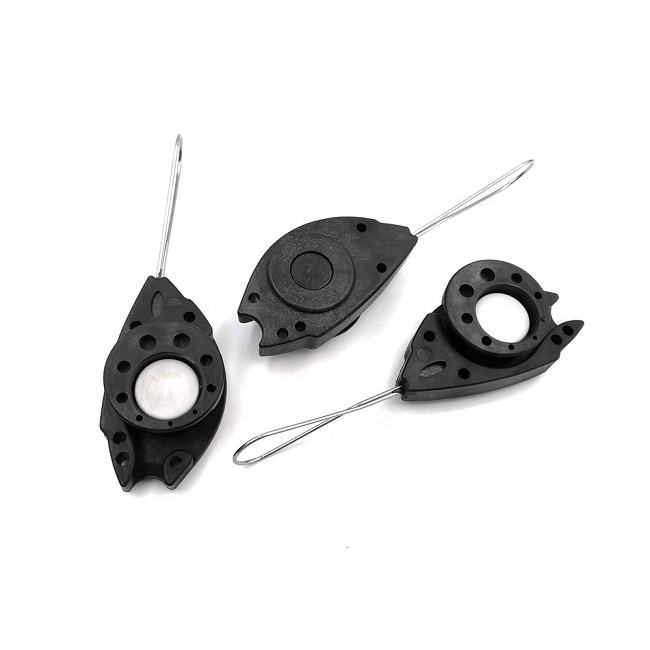

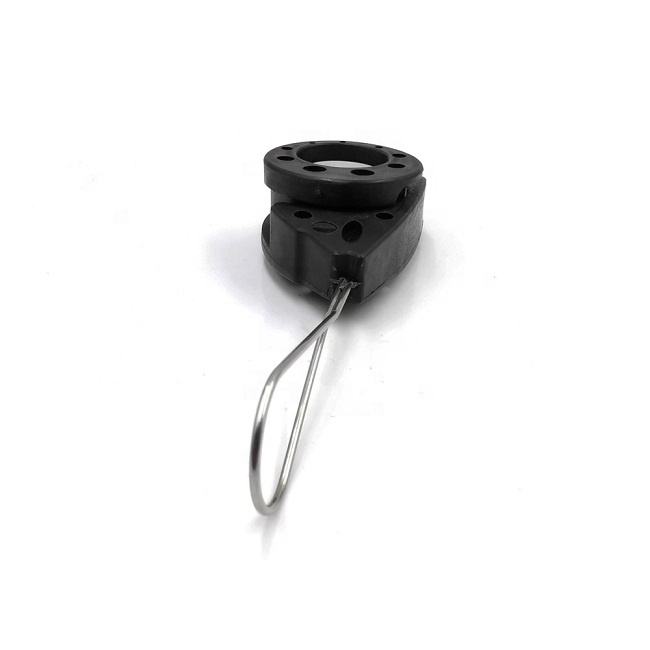

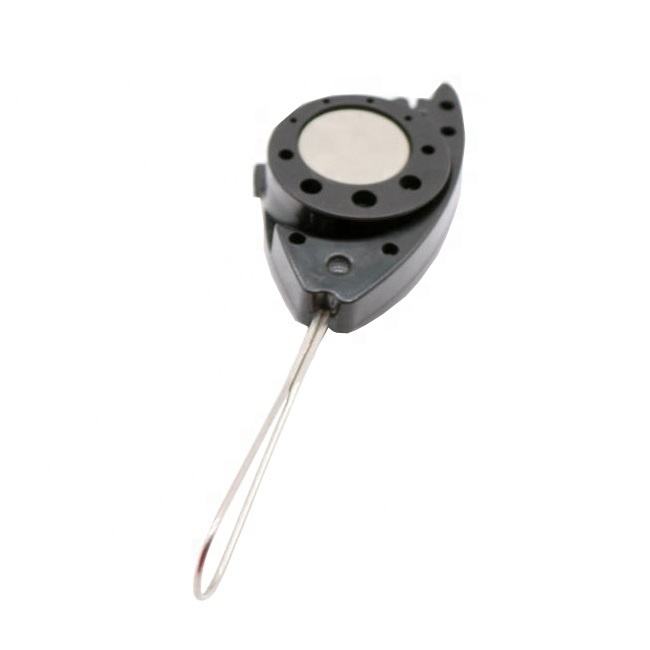

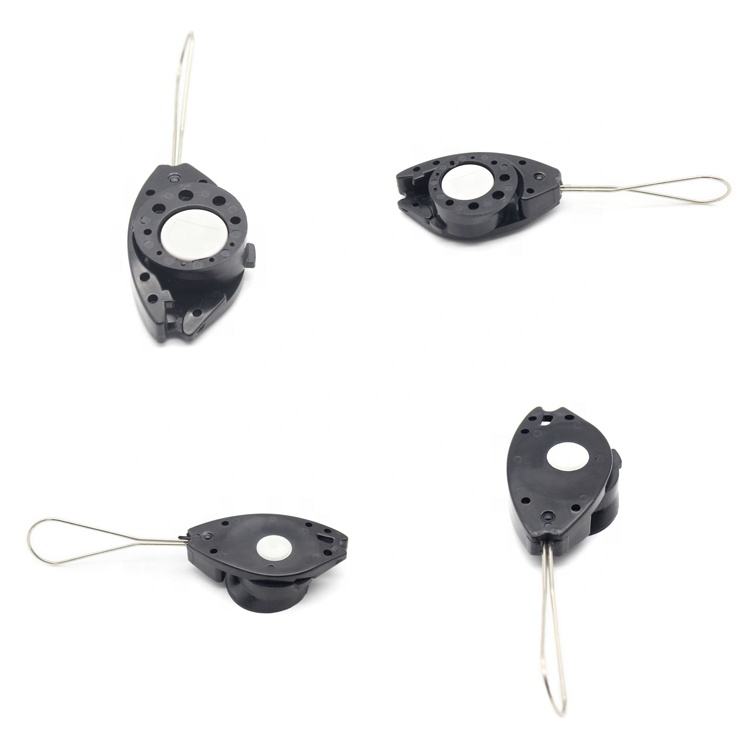

Cable Fish Clamp
Self-adjustable clamp for telecommunication cables M FISH is designed to anchor or support flat and round drop cables.
- Description
Description
Specifications
Packing

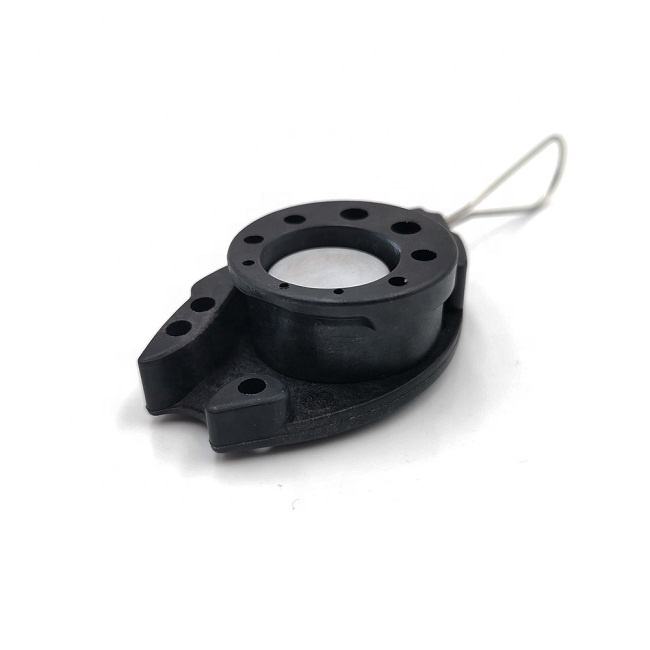

Self-adjusting of the clamp is done by the wheel on the clamp's body without using additional tools. It can be used for anchoring,
turning and suspension of drop cable routes. It is made of UV stable material resistant to ageing.The clamp does not contain parts that can fall off. Very important feature of M Fish clamp is its self-adjustable performance suitable for FTTx technology anywhere around the world. The lineman doing installation does not have to worry about the drop cable direction. It is mostly used with fiber optic cables.
Self-adjustable fish clamp Usage:
1.For the drop wire without Suspension Wire(in case of fiber optics diameter is 3.3mm * 2.0mm): 2 turns2.For the drop wire with Suspension Wire(in case of fiber optics diameter is 5.0mm * 2.0mm): 1 turns
Applications:
To feed drop cable to Home(FTTH) and other FTTx service.
