OTDR Optical Timing Domain Reflectometer
This advanced diagnostic tool for optical fibres allows the Fibre Engineer to take a snapshot of a fibre link.The OTDR sends short pulses of light down one end of a fibre at a specified repetition rate.Light reflected back from fibre discontinuities and light continuously back scattered from the fibre itself travels back to the OTDR, where the instrument records the optical power and arrival time.The arrival time of the pulse from a given point in the fibre is related to its distance from the OTDR.With this information, the OTDR graphically displays returned power versus distance.OTDRs are well-equipped for troubleshooting problems because they allow you to visually locate reflective events like connections and fibre breaks and non-reflective events like splices and tight bends by studying the graphical trace. The power difference between two points on the trace is an estimate of optical loss.
Send Inquiry PDF Download- Description
Description
Specifications
Packing
Automatic one-button testing
1310/1550 or 1310/1550/1625 nm wavelength
PON online test (only AOR500-P Series)
Short dead zone(8m)

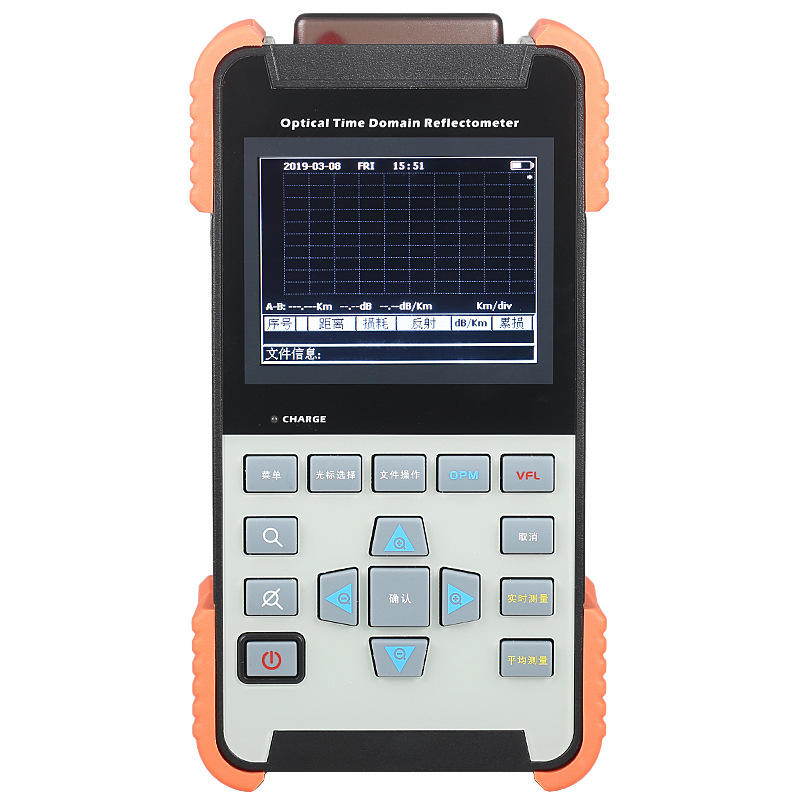

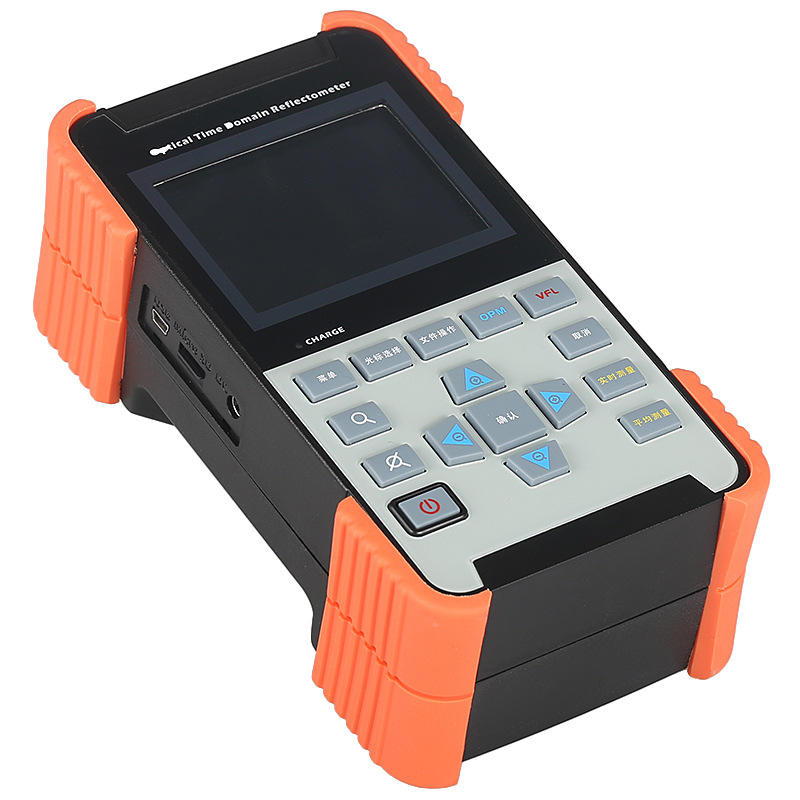

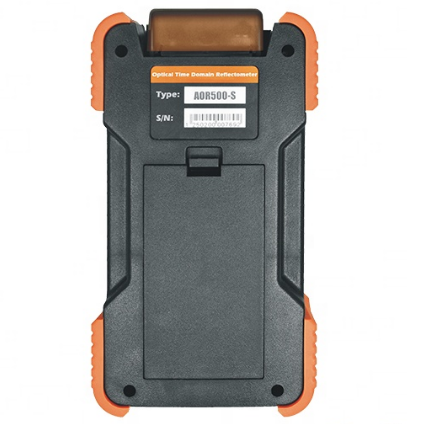

Alibaba online shopping Fiber Optic Test Mini OTDR meter AOR-500S 80km 1310/1550nm 24/22dB
High speed signal processing, short test time and fast analysis
Internal memory can store up to 10000 waveforms

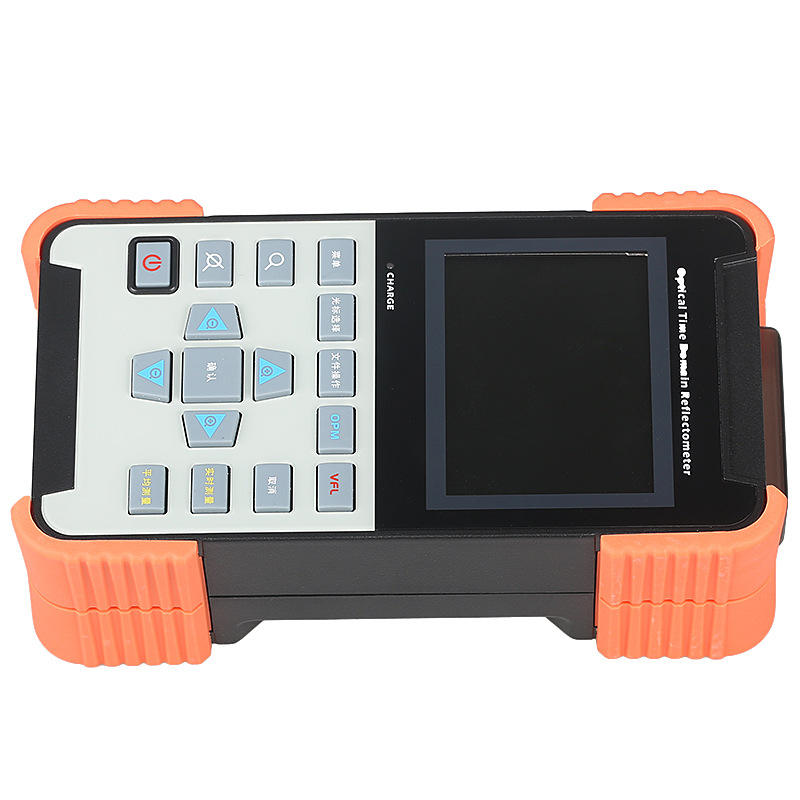

High contrast color TFT LCD

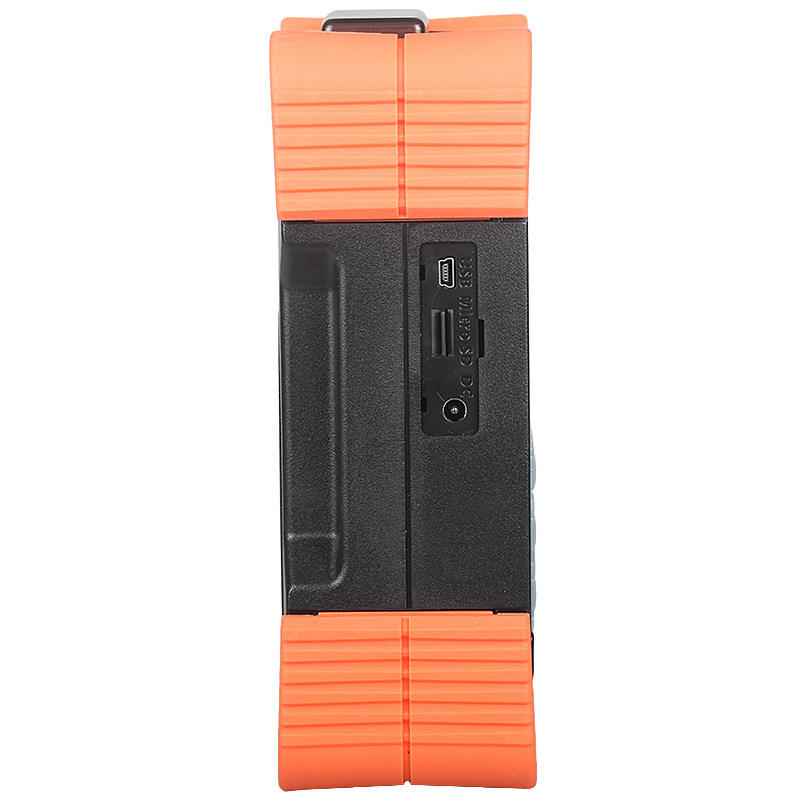

USB port connect to PC
Input laser signal auto detection and self-protection function

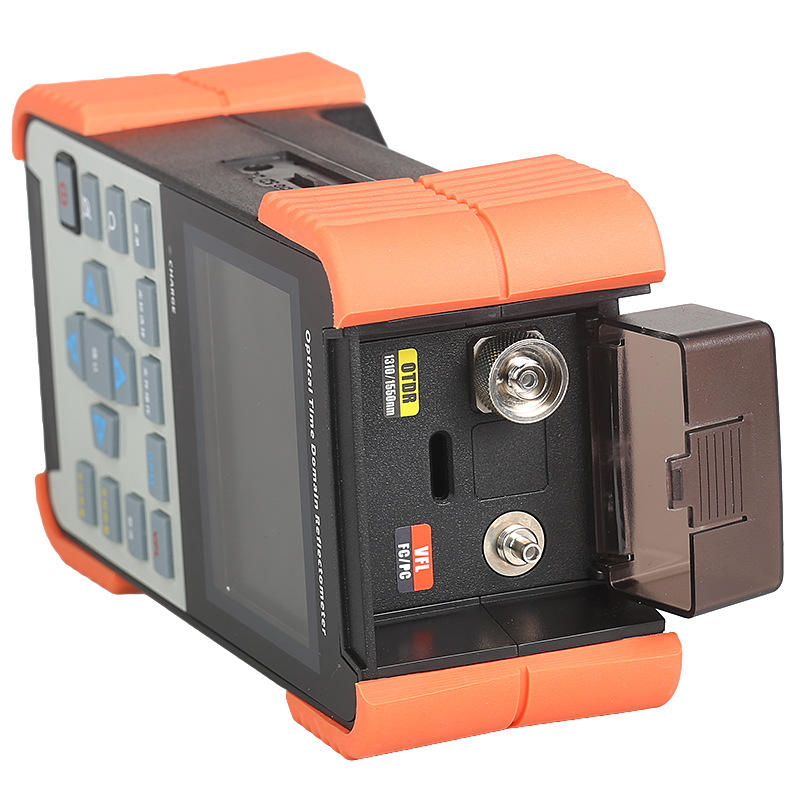

Built-in VFL
User-friendly OTDR simulation software shows details of events
