FTTH-S006 FTTx Distribution Splice Closure
FTTH-S006 Splitter Distribution Closure are used in the terminal link of FTTH access system,Especially suitable for pole and wall mounting application.In the optical fiber transmission network,splitter distribution box is the ideal equipment between optical node and terminal.With the functions of fiber storge,split,and distribution.It is divided outdoor type.
- Description
Description
Specifications

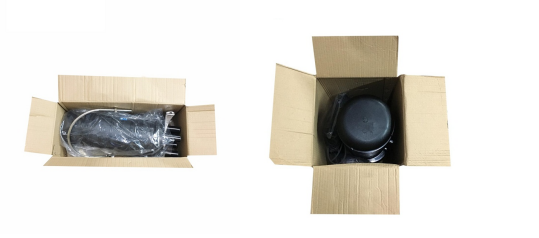

Packing
Features:
The housing material is PC.

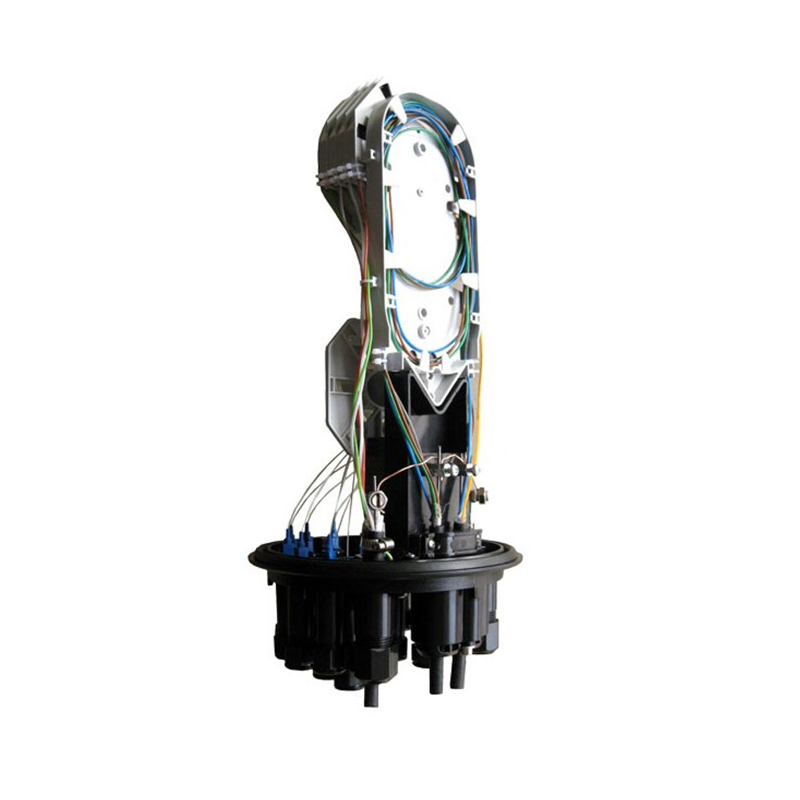

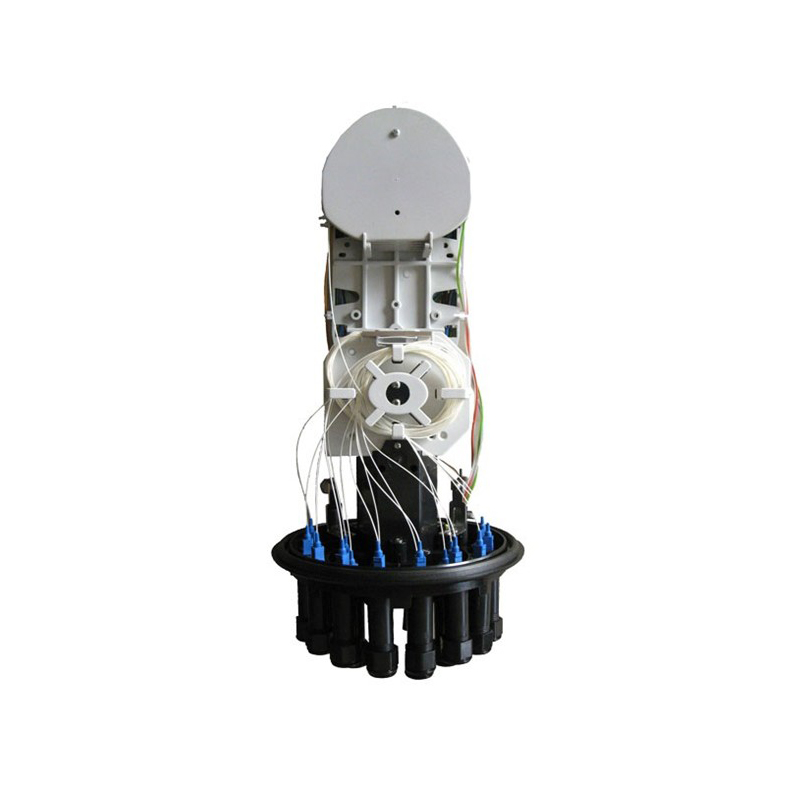

Two area design,down area is splitter,up is for fusion.The fibers distribution.clearly,easy to operate.
Capacity:144 cores(6pcs 24 cores splice tray), 16 SC adaptors。
Can installed 2-1:8,1-1:16 Blockless or Module PLC Splitter.Can installed 2-1:8,1-1:16 Micro or Cassette PLC Splitter.
Cable entry points :16 pcs for drop cable (Advance connect cable ), 4 pcs for express/cascade cable(Φ 8 mm-Φ 16 mm).

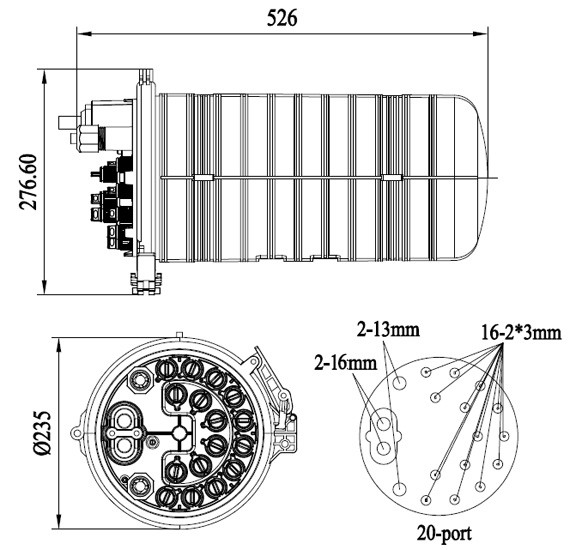

Size: 526mm×Φ235mm.
Technical Index:
Insulation resistance: > 2×104 MΩ/500V
Operating temperature - 40℃ ~ + 60℃
Connector Loss: ( Insertion. repeatbility, interchangeability)≤ 0.5dB
Retrun Loss: PC≥45dB, UPC≥50dB, APC≥60dB
Applications:
Aerial, Wall Mount, Pole Mount.
FTTX, access networks and broadband
