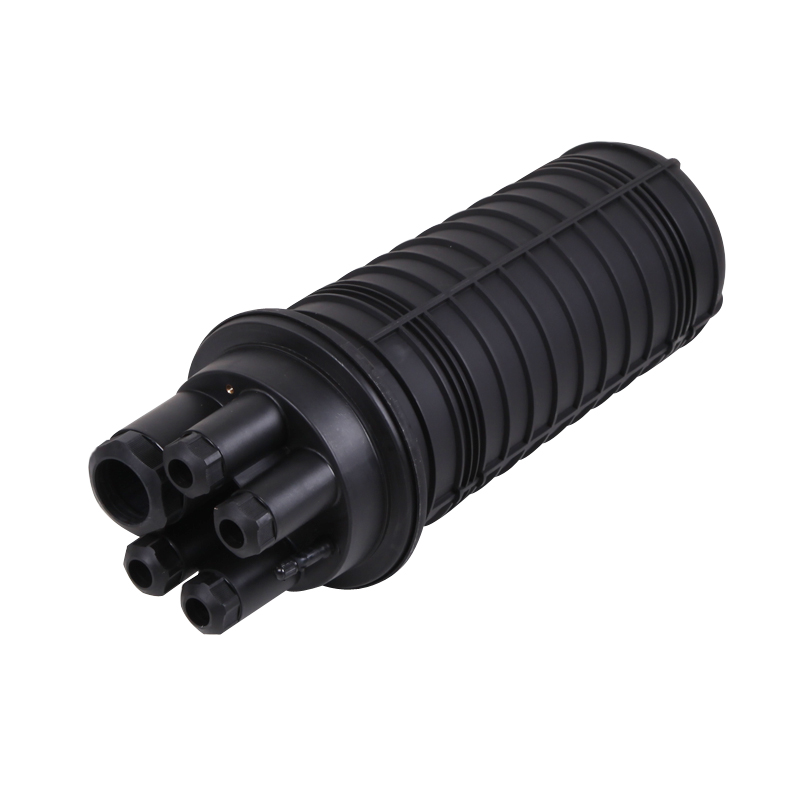

FTTH-S004 FTTx Dome Splitter Closure

FTTH-S004 FTTx Dome Splitter Closure, supports 1*16, 1* 32 PLC Splitter. 1pc round ports accept no-cutting cable. 4pc round Ports for branching (3mm,5mm,7mm different FTTH drop cable) Max 3*24F Splice tray (72 Fibers)

Send Inquiry PDF Download
  • Description




The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as pleasing appearance.
The mechanical structure is reliable and has the performance of resisting wild environment.
Cover most of the applications in the premise wiring networks like Fiber To The Home (FTTH)
Can accommodate up to 32 drop cables.
l Convenient attachable splitter module with  1:8 , 1:16, 1:32 splitter module for drop cable installation.
Re-useable grommet sealing open and close easily for adding or removing drop cables providing efficient cable installation with no mess
Aerial, Pole mount, Wall mount, ManHole install.
