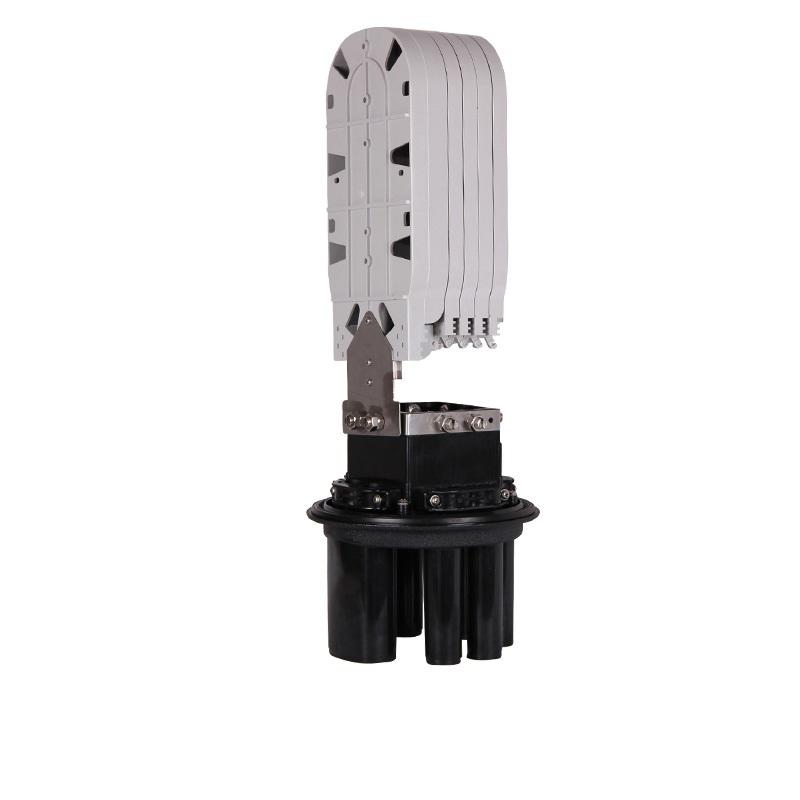

D014 DOME SPLICE CLOSURE
D014 dome heat shrinkable fiber optical splice closures can be used for the protection of various straight-through closures and branching closures. This kind of splice closures are sealed with the heat shrinkable tube, so that people can fix and seal the optical cable by heating the fiber shrinkable tube . The heat shrinkable fiber optical splice closures can be used for buried installation, manholes, holding poles, wall hanging and overhead installation.
Send Inquiry PDF Download- Description
Description

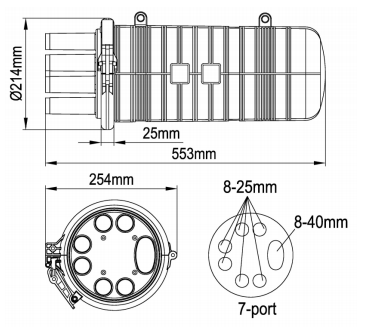

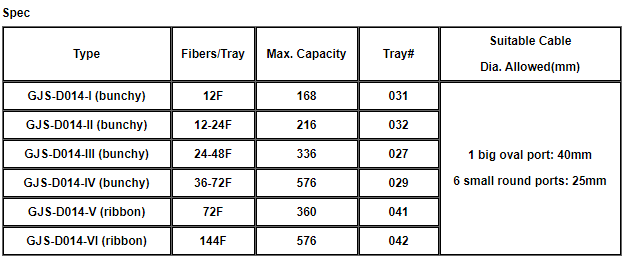

Specifications
Packing
Features
Advanced internal structure design
Easy to re-enter, it never requires re-entry tool it
The closure is spacious enough for winding and storing fibers
Fiber Optic Splice Trays(FOSTs) are design in SLIDE-IN-LOCK and its opening angle is about 90°
The curved diameter meets with international standard
Easy and fast to increase and reduce FOSTs
Innovative elastic intergrated seal fitting

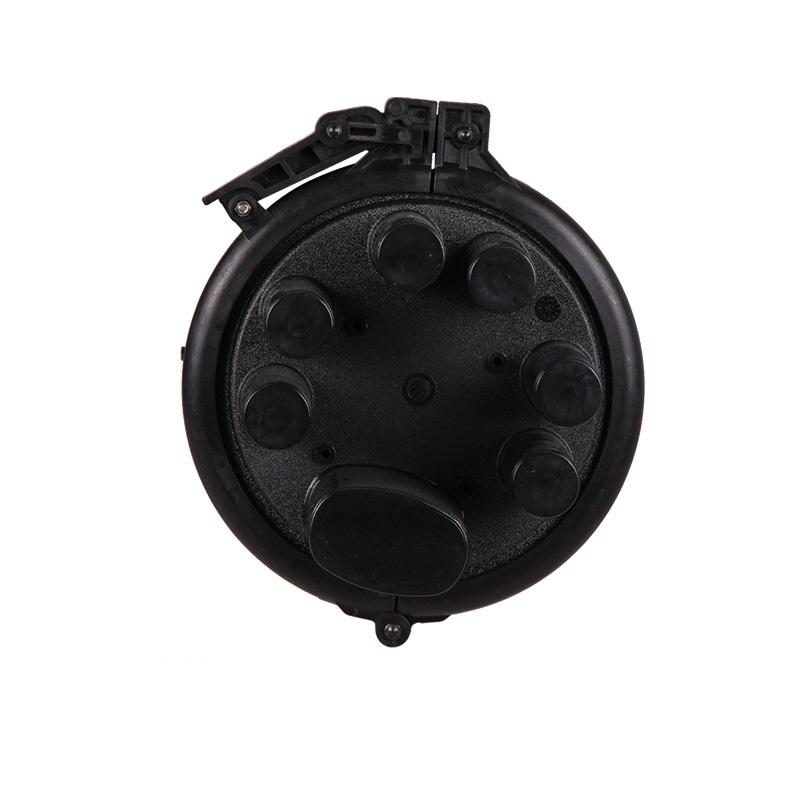

The FOST base is provided with an oval inlet/outlet port
Applications
Suitable for bunchy & ribbon fibers
Aerial, underground, wall-mounting, hand hole-mounting, pole-mounting and duct-mounting
