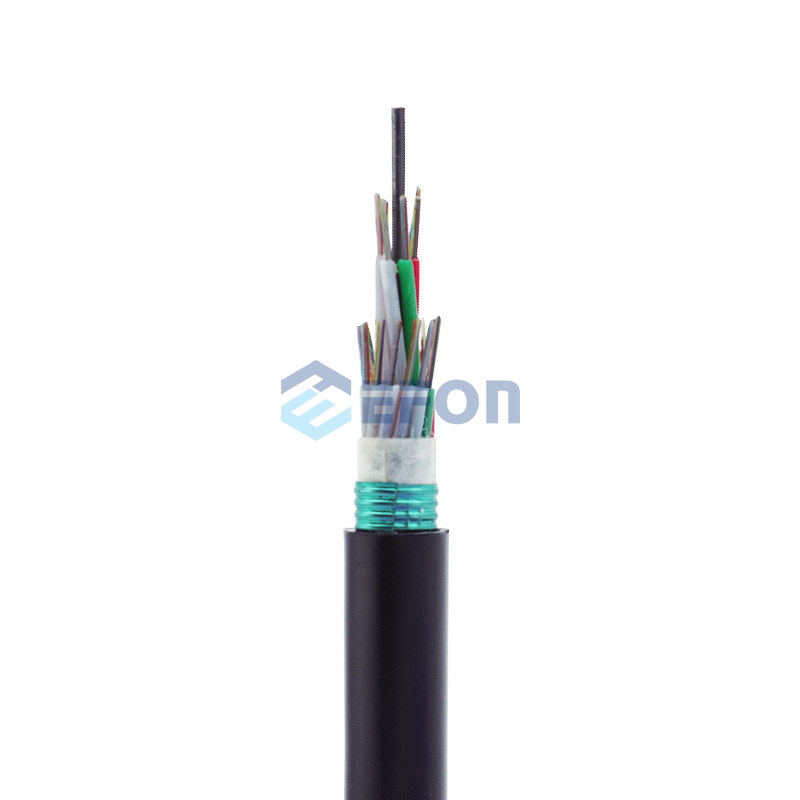

GYTS Multi Loose Tube Steel Tape Armored (CST)Cable
Single Jacket Non-Armored cables are lightweight with small diameter and designed for duct and aerial installation with lashing method. The loose tube stranded around central strength member. The cable core is protected with jelly to prevent water intrusion and migration, An Aluminum Polyethylene Laminated as moisture barrier. And cover with a black Polyethylene out jacket.
Send Inquiry PDF Download- Description
Description
Specifications
Packing

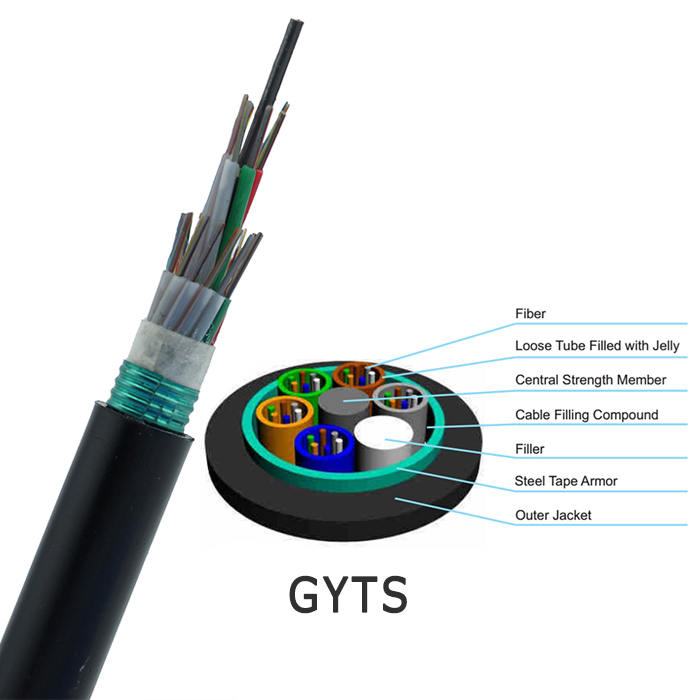

Product Construction:
Fiber: 2-288fibers
250µm colored fiber
Multi-loose tube gel-filled
Steel Tape Armored
Central Strength Member: Fiberglass reinforced plastic (FRP)
Outer Jacket: Black UV and waterproof polyethylene (PE).
Features:
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provides high tensile strength.
UV and waterproof design.
Applications:
Inter building voice or data communication backbones.
Installed as ducts, underground conduits and direct buried.
