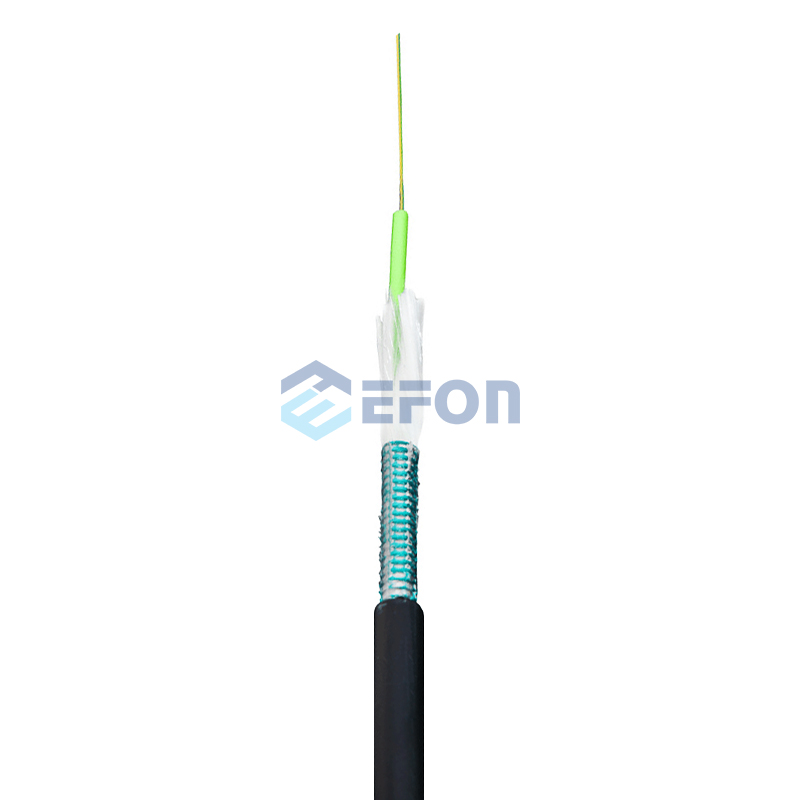

GYFXSH Uni-Loose Tube With CST Armored Cable
Indoor/Outdoor GYFXSH Uni-Loose Tube With CST Armored Cable is designed for Outdoor/lndoor install which fiber counts upto 24fibers, Fiber optic cable special design used for campus backbone (inter-building), building backbone (intra-building), together with outdoor and indoor installation. Small diameter and light weight design to save space inside duct. Designed for duct, underground conduit installation. Anti-rodent.
Send Inquiry PDF Download- Description
Description
Specifications
Packing

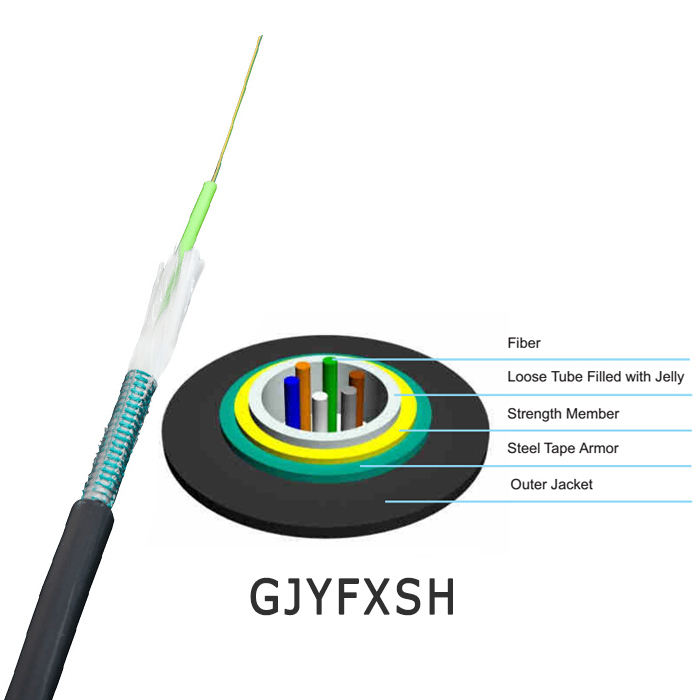

Product Construction:
Fiber: 2-24fibers
250µm colored fiber
Uni-Loose tube gel-filled
Strength Member: Overall fiberglass reinforced yarn (Water Blocking)
Armored: Corrugated Steel Tape
Outer Jacket: UV and flame resistant LSZH
Features:
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provide high tensile strength.
Double Jacket prodive machanical protection.
UV and waterproof design
Applications:
Inter building voice or data communication backbones.
Installed as ducts, underground conduits and direct buried.
Fiber: 2-24fibers
250µm colored fiber
Uni-Loose tube gel-filled
Strength Member: Overall fiberglass reinforced yarn (Water Blocking)
Armored: Corrugated Steel Tape
Outer Jacket: UV and flame resistant LSZH
Features:
All dielectric structure Up to 288 fibers.
Loose tube gel-filled construction for superior fiber protection.
Overall fiberglass reinforced yarn provide high tensile strength.
Double Jacket prodive machanical protection.
UV and waterproof design
Applications:
Inter building voice or data communication backbones.
Installed as ducts, underground conduits and direct buried.
