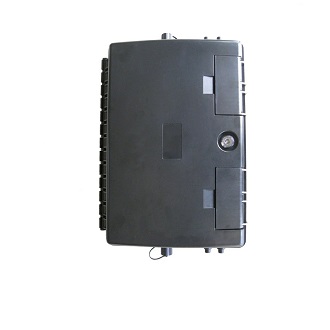

FTTH-S008 FTTx Distribution Box
FTTH-S008 FTTx Distribution Box are used in the terminal link of FTTH access system,Especially suitable for pole and wall mounting application.In the optical fiber transmission network,splitter distribution box is the ideal equipment between optical node and terminal.With the functions of fiber storge,split,and distribution.It is divided outdoor type.
Send Inquiry PDF Download- Description
Description
Specifications
Packing
Features:
The housing material is PC+ABS.
Two area design,down area is splitter,up is for fusion.The fibers distribution.
clearly,easy to operate.
Capacity:144 cores(6pcs 24 cores splice tray), 16 SC adaptors.
Can installed 2-1:8,1-1:16 Micro or Cassette PLC Splitter.
Cable entry points :16 pcs for drop cable (Advance connect cable ), 8 pcs for express/cascade cable(Φ 8 mm-Φ 20 mm).

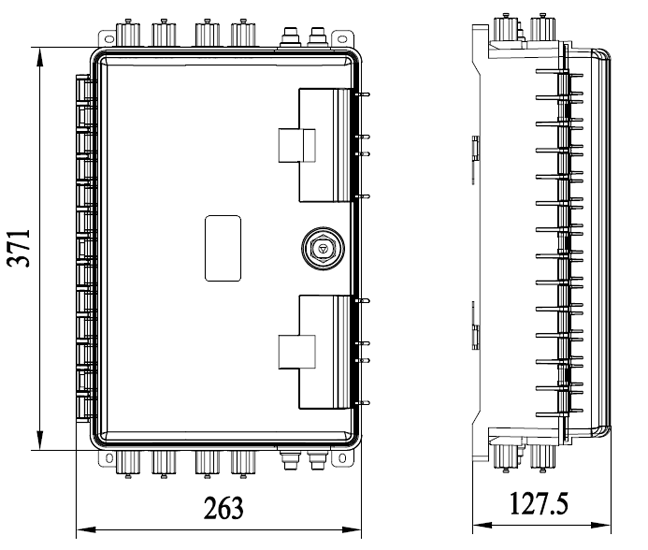

Size: 371x263x127.5mm.
Applications:
Aerial, Wall Mount, Pole Mount.
FTTX, access networks and broadband
