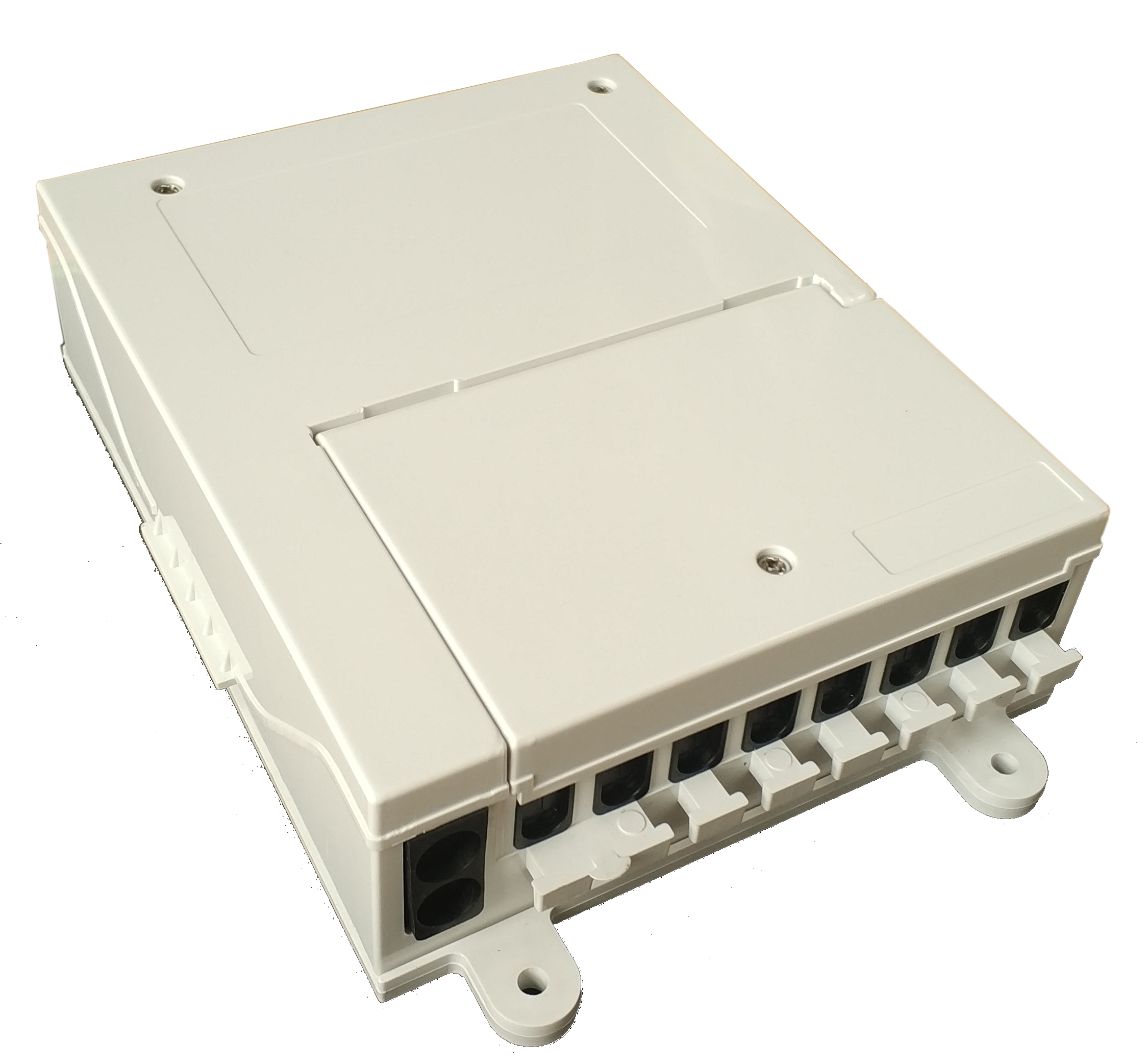

EFON FAT-8A optical distribution box
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.
The fiber splicing.splitting, distribution can be done in this box and meanwhile it provides solid protection and management for the FTTX network building
Send Inquiry PDF Download- Description
Description

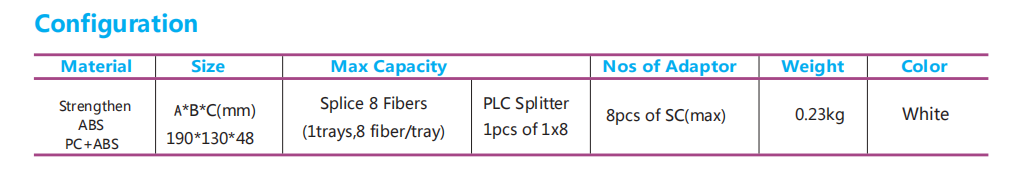

Specifications
Packing
Features
1、Total enclosed structure.
2、 Material: ABS、PC+ABS, wet-proof、 water-proof、dustproof、anti-aging, protection level up to IP65.
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
4 、 Cable, pigtails, patch cord:s are running through own path without disturbing each other, cassette type SC adaptor .installation, easy maintenance.

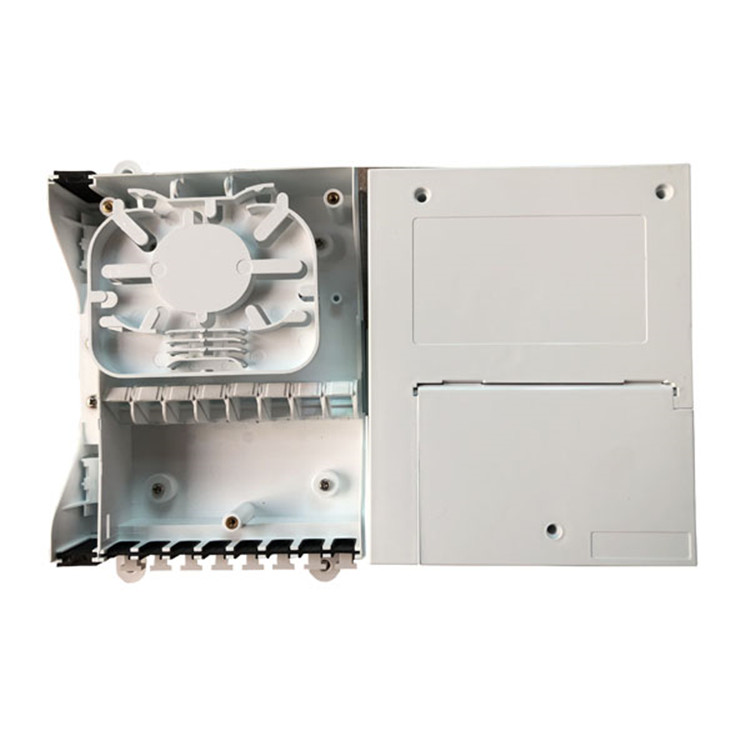

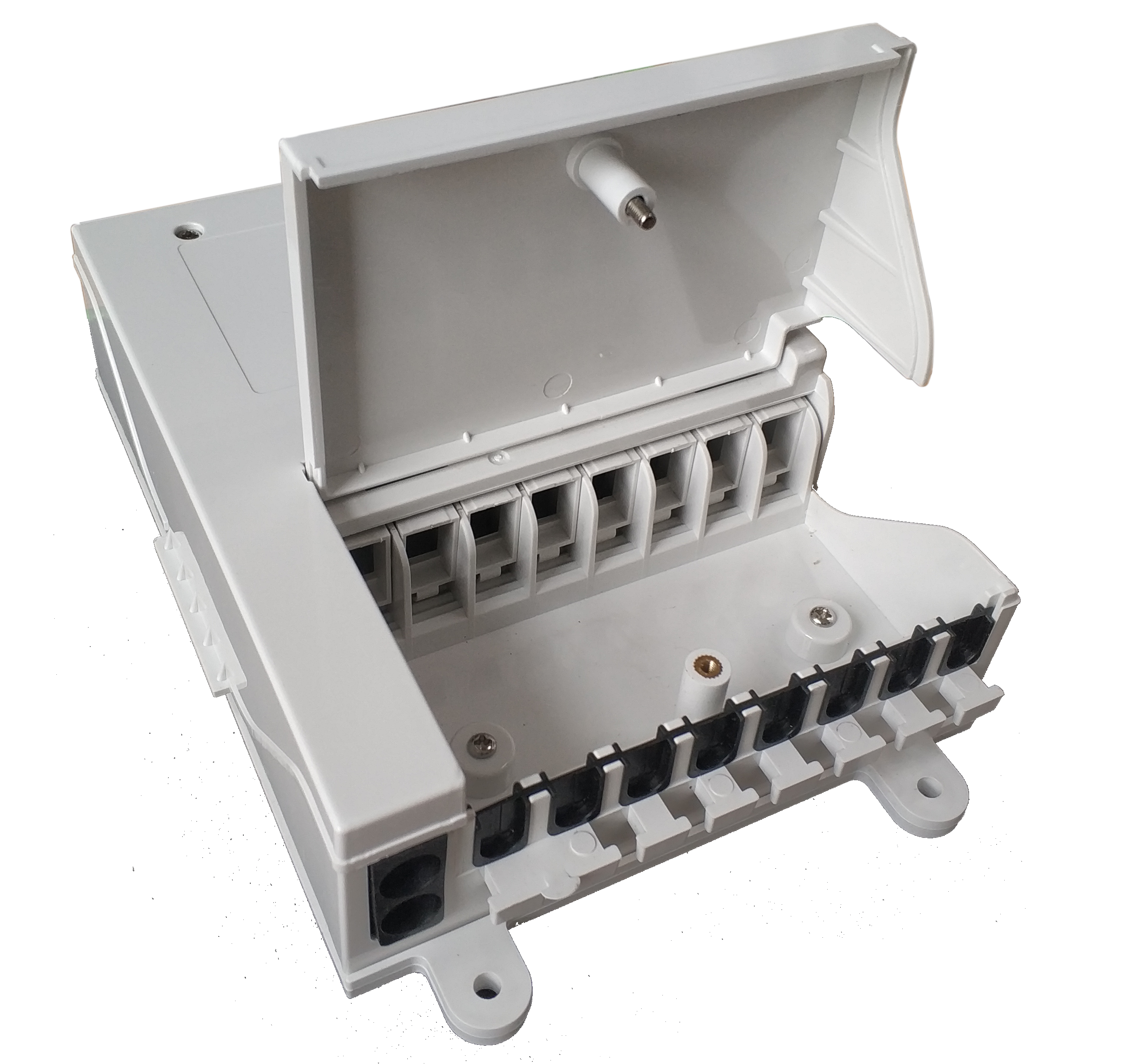

5、 Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
6 、 Cabinet can be installed lby the way of wall-mounted or poled-mounted,suitable for both indoor and outdoor uses.
