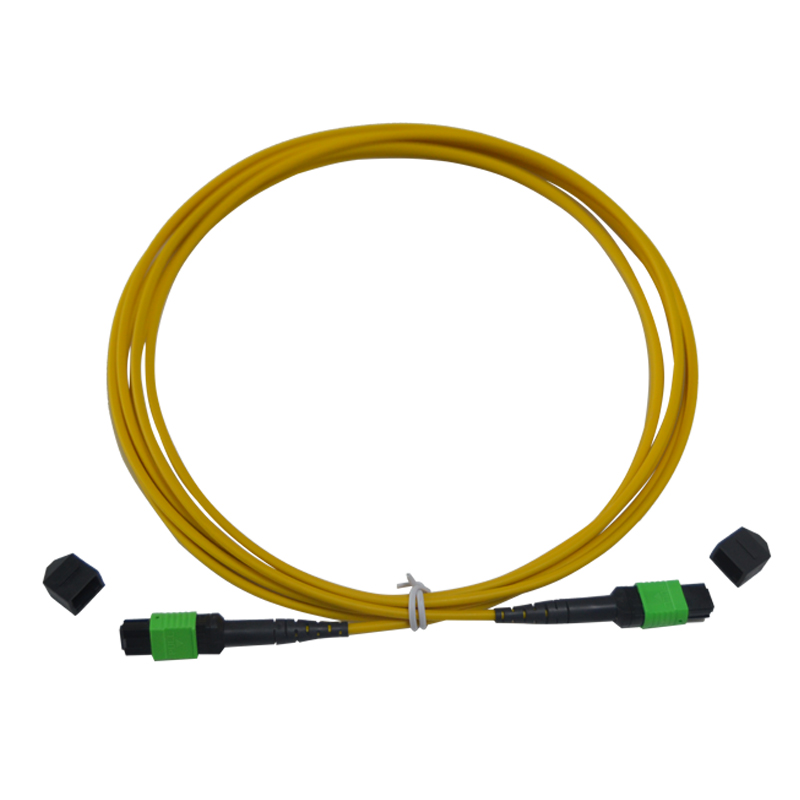

MPO/MTP Patch Cord
MPO patch cord is a multi-fiber patch cord with fiber count of 4, 8 or 12. MPO patch cords use Precision molded MT ferrules, together with metal guide pins and precise housings ensuring fiber alignment when mating.
Send Inquiry PDF Download- Description
Description

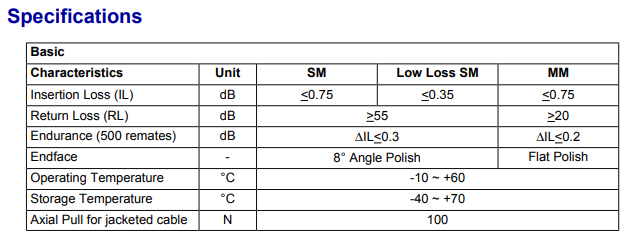

Specifications
Packing
Description:

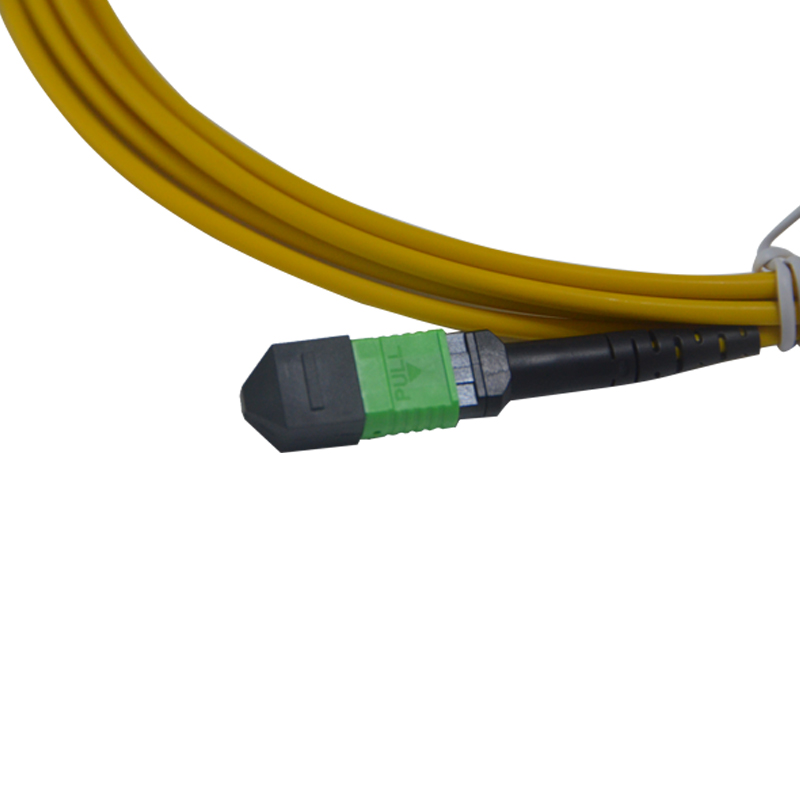

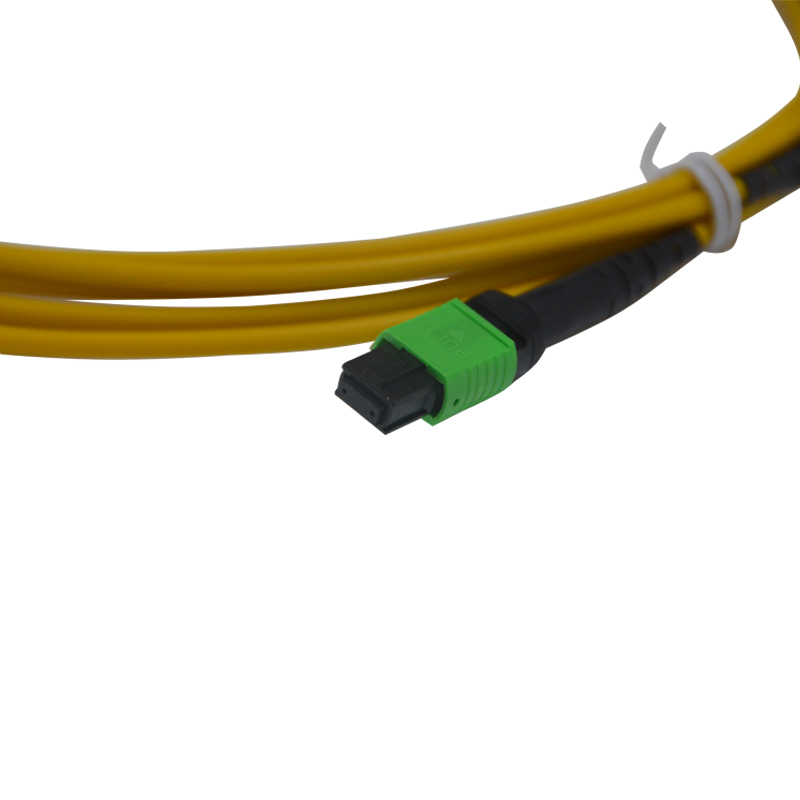

MT family is an array technology providing quick connection for 4, 8 or 12 fibers. It reduces time and cost of installation. Fiber alignment is achieved with high precision guide pins. The ferrules and connectors are manufactured to IEC 61754-5 and 61754-7 respectively. The MT family has two catagories: 1) MPO or MTP* connector assembled to ribbon(or ribbonized) cable or bare ribbon. Connectors with push-pull latching mechanism are coupled via an adapter. MTP has an extra feature over MPO with a removable housing for re-polishing. 2) MT ferrule with fiber ribbon. MT ferrules are coupled using a spring clamp only. Multimode connectors are flat polished, and single mode connectors are 8° angle-polished. Other end-face polishes are provided on request.
Fetures:
High density interconnection
High precision guide pins for fiber alignment
Materials meet RoHS requirements
Riser, Plenum, and LSZH cables available
MT family is an array technology providing quick connection for 4, 8 or 12 fibers. It reduces time and cost of installation. Fiber alignment is achieved with high precision guide pins. The ferrules and connectors are manufactured to IEC 61754-5 and 61754-7 respectively. The MT family has two catagories: 1) MPO or MTP* connector assembled to ribbon(or ribbonized) cable or bare ribbon. Connectors with push-pull latching mechanism are coupled via an adapter. MTP has an extra feature over MPO with a removable housing for re-polishing. 2) MT ferrule with fiber ribbon. MT ferrules are coupled using a spring clamp only. Multimode connectors are flat polished, and single mode connectors are 8° angle-polished. Other end-face polishes are provided on request.
Fetures:
High density interconnection
High precision guide pins for fiber alignment
Materials meet RoHS requirements
Riser, Plenum, and LSZH cables available
