D5817-B DOME SPLICE CLOSURE
D5817 FOSC (Fiber Optic Splice Closure) series offer a unique solution for big capacity solution for deployment of fiber to the home. 5817 FOSC series of dome closure is a family product line, available in three sizes： the 5817-A, 5817-B and 5817-C.
All sizes are designed for use with comment cable construction (loose buffer tube, loose fiber), in any environmental(aerial, pedestal, buried, handhole, manhole).
The D5817-B closure is the middle in the 5817 FOSC series which provide max capacity up to 360f.
- Description
Description
Specifications
Packing
Feature
Made of modified engineering plastic with high strength, anti impact and anti corrosion.

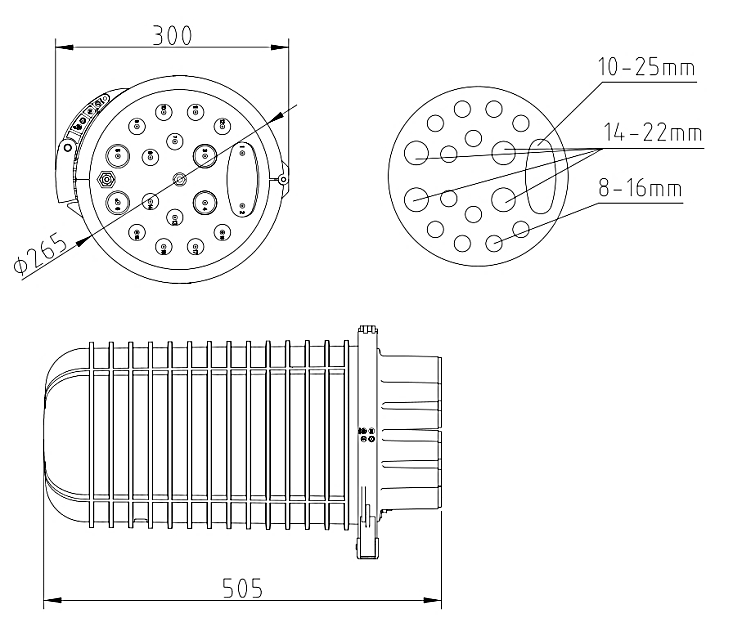

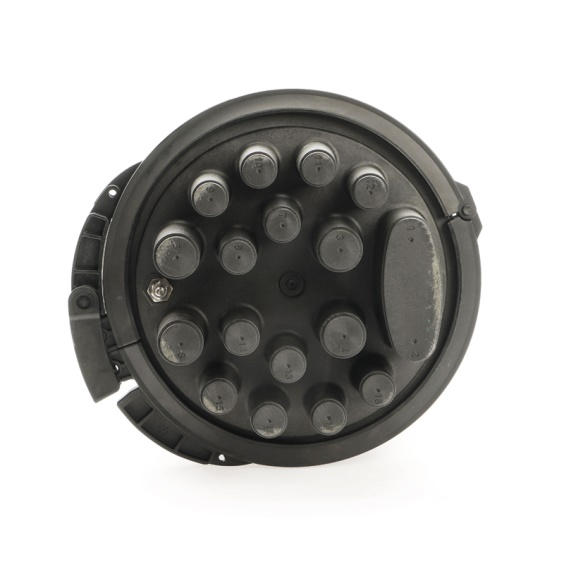

Cable diameter: 1 uncut port meet φ 10 ～ 25mm cable; 4 branch ports meet φ 14 ～ 22mm cable;12 branch ports meet φ8～16mm cable
Product capacity: Single fiber max capacity is up to 360f, each tray support 12f or 6f
Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
Sealing mode: heat shrink seal is adopted for cable ports, with protection grade of IP68.
3 types of splice trays are available for selection, including 12f tray, 6f tray and splitter tray
Made of modified engineering plastic with high strength, anti impact and anti corrosion.
Cable diameter: 1 uncut port meet φ 10 ～ 25mm cable; 4 branch ports meet φ 14 ～ 22mm cable;12 branch ports meet φ8～16mm cable
Product capacity: Single fiber max capacity is up to 360f, each tray support 12f or 6f
Installation method: Suitable for direct buried, aerial, pole,pipeline,manhole, etc.
Sealing mode: heat shrink seal is adopted for cable ports, with protection grade of IP68.
3 types of splice trays are available for selection, including 12f tray, 6f tray and splitter tray
